Anti-Theft Alarm pinout:

     ______~~~______
  1| = x x = = = = = = |9
10| = x x = = = = x = |18
    ~~~~~~~~~~~~~~~~

1) RS485B
2) NC
3) NC
4) Turn Right
5) Motor Rolling Alarm (controller pin 19)
6) +12V
7) Anti-Theft Signal (controller pin 14)
8) Ignition (controller pin 10, 20)
9) Anti-Theft Positive (+60V, controller pin 30), "Start" button (yellow)
10) RS485A
11) NC
12) NC
13) Turn Left
14) Alarm Button (Righ handle switches)
15) "Start" button (blue)
16) "Start" button (gray)
17) NC
18) Anti-Theft Negative (controller pin 7)


Start button connector pinout:
   __~~__
1| = = = |3
   ~~~~~~
1) Anti-Theft Alarm (to pin 9); 2) Anti-Theft Alarm (to pin 16); 3) Anti-Theft Alarm (to pin 15)

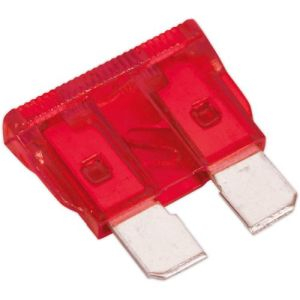

Fuses (10 Amp Automotive Standard Blade Fuse)

Fuse 1 (10A)
+60V switched --[]-- +60V (controller pin 30, Anti-Theft Positive pin 9, VCU pin 10)

Fuse 2 (10A)
DC-DC +12V --[]-- +12V

Battery cable connector pinout:
   _~~_
1| = = |2
   ~~~~
1) GND (60V, black); 2) +60V (red)


Battery RS485 cable connector pinout:
   __~~__
1| = = = |3
   ~~~~~~
1) GND (60V, green); 2) RS485B (violet-purple); 3) RS485A (pink)

Back light pinout:
   __~~__
1| = = = |3
   ~~~~~~
1) +12V (back light); 2) GND (12V); 3) High Brake (brake light, controller pin 11)


Charger connector pinout:
   _~~_
1| = = |2
   ~~~~
1) +60V (red); 2) GND (60V, black)


Additional cable pinout (cable to rear mudguard):

   _~~_
1| = = |2
3| = = |4
  ~~~~~

1) GND (12V); 2) +12V (license plate light)
3) Turn Right (rear); 4) Turn Left (rear)

Motor Temp sensor pinout:
   _~~_
1| = = |2
   ~~~~
1) Motor Temp sensor; 2) GND (Hall sensor GND)

In main cable pin 1 connected to GND, pin 2 connected to Motor Temp, controller pin 9. So, both pins are grounded. I think that current controller doesn't support Motor Temp sensor.

The pinout of Tromox Mino is completed.

The charge connector under the seat fell apart for no apparent reason:
New connector:

Thanks for the pinouts! So, if the charger connector only has connectors for + and - it doesn‘t send any other information (e.g. RS485 data) to the charger? My charger has a single data pin, which is most likely GND.

I think the charger has not any serial communication. I can check the battery connector pinout and we will know what can do that single data pin in the charger connector.

Battery connector pinout (cable, male connector):
   ________
1| o        o |2
3 \ = = = = /6
    ~~~~~~~

1) +60V
2) GND
3) NC
4) GND
5) RS485A
6) RS485B

So, the single data pin (3) in the charger connector is not connected to anything.
