Super Soco TC Umbau

[Wlad76]

ich habe hier welche gesehen, weiss allerdings nicht ob das die selbe Leuchte ist..
https://www.outdoordreams.eu/LED-RUeCKLICHT.html

[MJ97]

Sieht sehr danach aus

Dankeschön

[Xmanu]

Der Vesc bietet dank seiner Open-Source Firmware zudem die Möglichkeit gewünschte Anpassungen vornehmen zu können.
Beim Vesc wäre es aber eine Aufgabe das Protokoll des Tachos zu reverse-engineeren.
Ich meine vor einem Jahr mal gelesen zu haben, dass es RS485 sei.


Hello from Spain,

sorry to write in English, unfortunatly even though lived six years in Lindau, not remember any word of German.
As a TC50 user and with a little help of a Telegram users of SuperSoco we have decoding the relevant messages of the RS485 messages of the T line of bykes and the CAN messages of the CPX scotters. We have spend the last year improving an unofficial Android app with this knowledge of internal byke messages and with a lot of usefuls features that each member suggest, as Firebase upload, MQTT and IFFFt control of chargers, etc, etc. We have all this info and app on the Telegram group and our github site, look for SuSoDevs ( i don´t know if links are allowed here ).
Not the 100% of the messages are decoded, but let me know what do you need and I will help you if they are on our list.

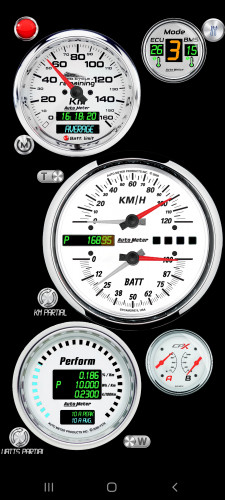

Our last Android version main screen:

[Wagner]

Zum Controller:
ich habe mittlerweile einen ASI BAC8000 verbaut, mit dem ich bei ~16kW Spitzenleistung liege. Topspeed sind aufgrund des 60V Akkus(der VESC konnte leider nicht mehr..) jetzt mit field weakening ca. 85km/h.

Keine Ahnung was mein VESC für Probleme mit dem qs205 hub motor hatte..der ASI läuft auf jeden Fall problemlos.

Zum Rücklicht: Hab irgendeins via Ebay bestellt, Suchkriterien: LED Rücklicht, flexibel, e-geprüft

[daOEKL]

Der Vesc bietet dank seiner Open-Source Firmware zudem die Möglichkeit gewünschte Anpassungen vornehmen zu können.
Beim Vesc wäre es aber eine Aufgabe das Protokoll des Tachos zu reverse-engineeren.
Ich meine vor einem Jahr mal gelesen zu haben, dass es RS485 sei.


Hello from Spain,

sorry to write in English, unfortunatly even though lived six years in Lindau, not remember any word of German.
As a TC50 user and with a little help of a Telegram users of SuperSoco we have decoding the relevant messages of the RS485 messages of the T line of bykes and the CAN messages of the CPX scotters. We have spend the last year improving an unofficial Android app with this knowledge of internal byke messages and with a lot of usefuls features that each member suggest, as Firebase upload, MQTT and IFFFt control of chargers, etc, etc. We have all this info and app on the Telegram group and our github site, look for SuSoDevs ( i don´t know if links are allowed here ).
Not the 100% of the messages are decoded, but let me know what do you need and I will help you if they are on our list.

Our last Android version main screen:

That sounds quite well!
The app looks nice too.
I am new to this forum too, so not 100% sure if links are ok, but I guess they are.

Would love to have a look at your repo would you mind sending me the link?
How do you do the connection between app and bike?
Do you use a seperate µC and a bluetooth-chip?

[Xmanu]

Hello @daOEKL,

thanks for your words. The app and the development team move on this Telegram group: https://t.me/+JgBoczdi1PUxZjU0
and the repo is here: https://github.com/Xmanu12/SuSoDevs
In the documentation you have all the relevant info and details of the interface needed. But answering your questions:
>>How do you do the connection between app and bike?

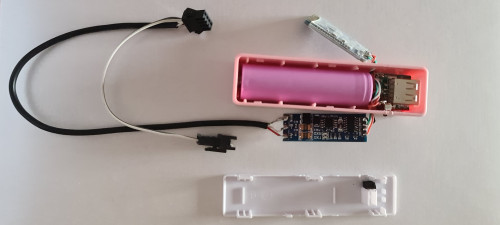

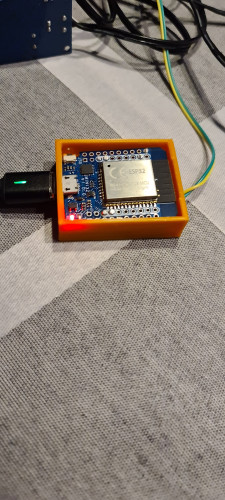

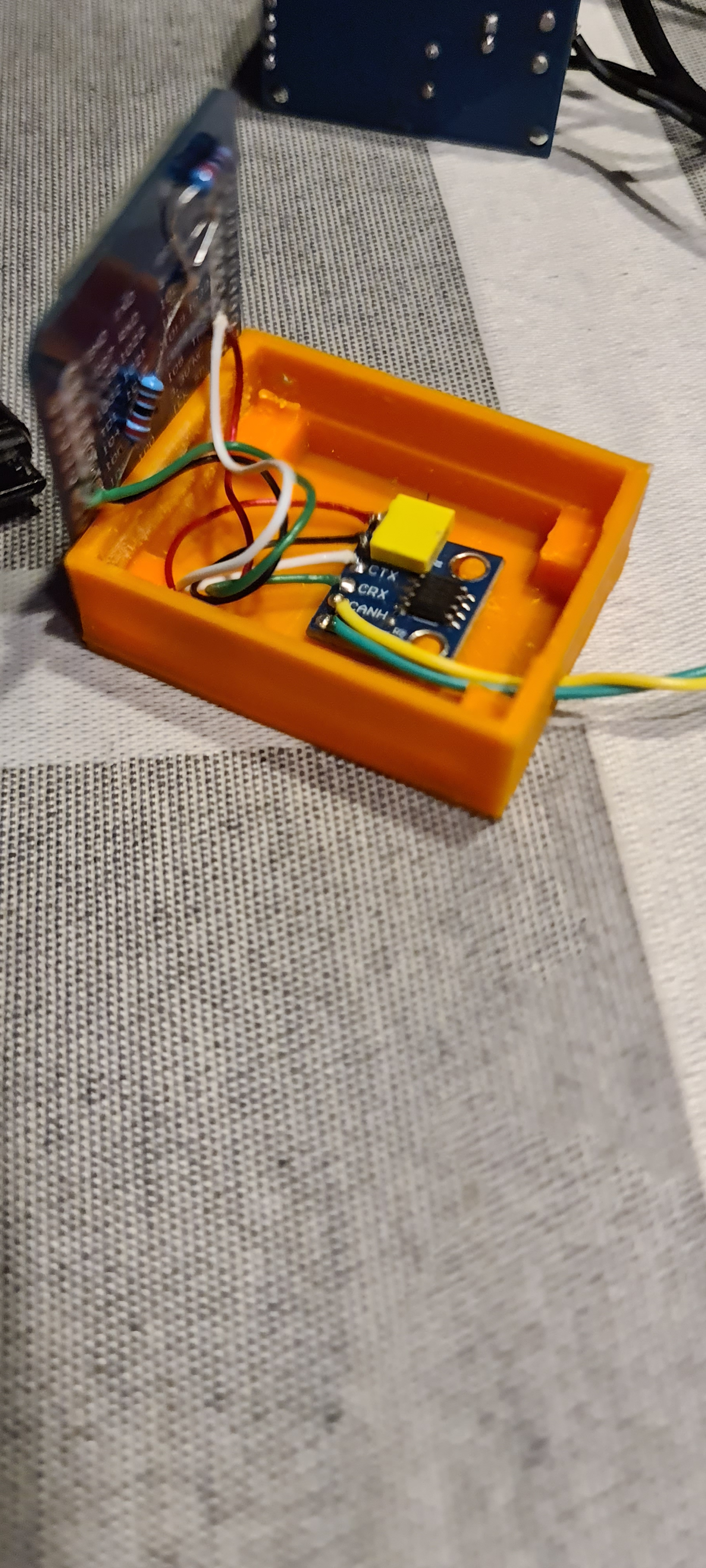

In the case of TC-MAX, TSX, TC50 and all the T-line that is the same RS485 protocol, we use a simple interface of two modules, one rs485 to TTL module with an universal Bluetooth v2.0 module, type HC-05. In the case of CPX that uses CAN protocol, we use a ESP32 with a litle CAN transceiver module.
>>Do you use a seperate µC and a bluetooth-chip?
Only for the CPX Can protocol, read the Hardware secction of the repo.
Hope you find usefull the app!!
Manuel

[daOEKL]

This is fantastic!
This way it should be easy to build an own controller based on the popular VESC.
Maybe I'll give it a try.

[Wlad76]

Hallo liebe Soco Freunde!
Die Frage geht an @turbofoen ..
Hast Du den Lenker von ABM gekürzt oder Originallänge gelassen?
Gruß aus Bonn

[turbofoen]

Hallo liebe Soco Freunde!
Die Frage geht an @turbofoen ..
Hast Du den Lenker von ABM gekürzt oder Originallänge gelassen?
Gruß aus Bonn

Der ist ungekürzt...

[Wlad76]

Danke Dir!
